maximum speed

90

km/h
displacement

149

cc
wheelbase

1285

mm
ground clearance

140

mm

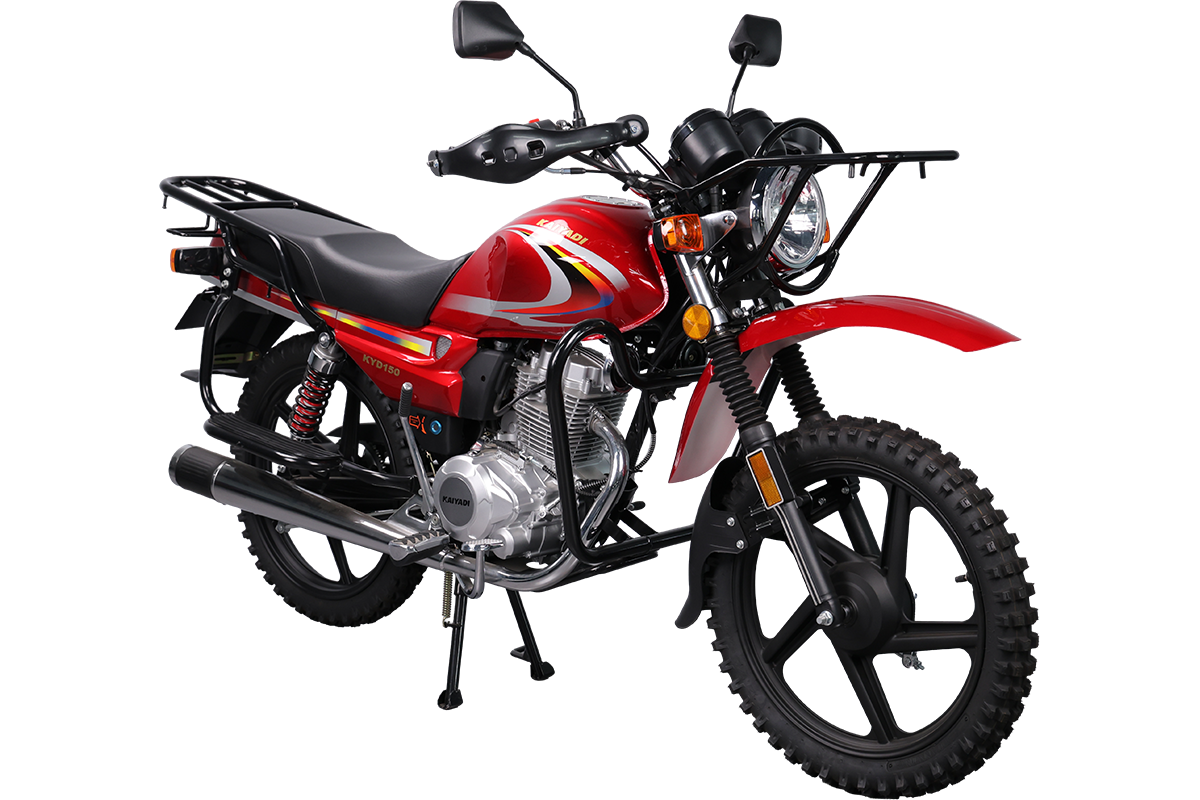

zf150-8(a)

red
the details are subject to the actual vehicle
specifications

vehicle parameters

engine parameters

basic configuration

size 2070x780x1110 mm
wheelbase 1285 mm
net weight 105 kg
ccurb weight 150 kg
ground clearance 140 mm
engine single-bar four-stroke air-cooled
compression ratio 9.2:1
displacementf 149 cc
cylinder diameter x stroke 62x49.5 mm
maximum power 9.0kw/8500rpm
maximum torque 10n·m/7500rpm
start mode electric start
maximum speed 90 km/h
ignition method cdi
tire size(fr.rr) 2.75x18,3.00x18
brake mode drum brake
